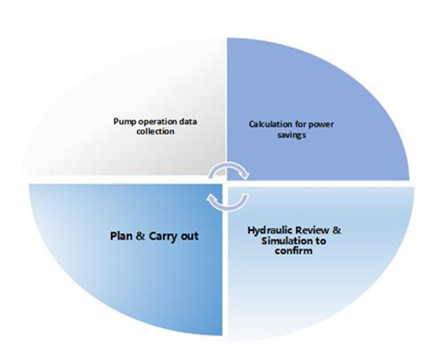

Hydraulic Simulation for pump Curve improvement

Power Losing in Pump System:

1) Mechanical Efficiency Loss

2) Low Hydraulic Efficiency Design

3) Pipeline not fitting & loss

4) Pump System configuration

5) Partial circulation & Flow allocation

To change some technical data to achieve a better hydraulic curve design. See information as above

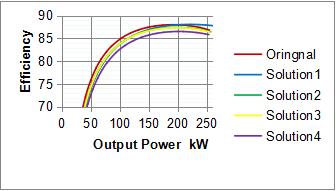

Regarding the motor Efficiency, we have the following method to calculation for motor lamination

Power Losing in Pump System

Perfect fault analysis and solution by simulation verification as below:

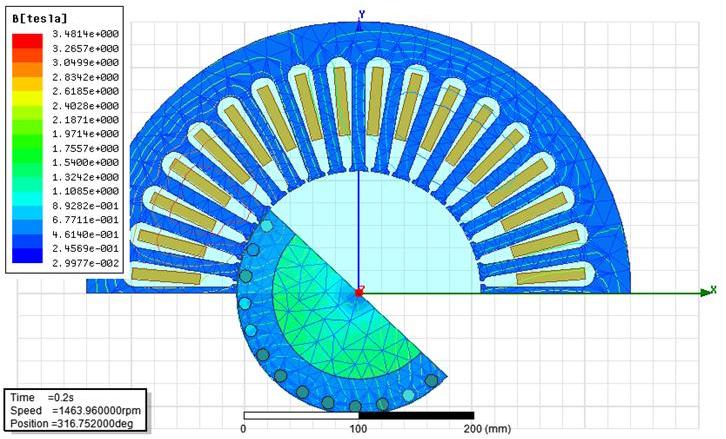

1, Electromagnetic design and simulation,

2, Establishment of electromagnetic model,

3, Automatic calculation of current, power factor, efficiency, electromagnetic torque, etc.

Electromagnetic performance analysis
