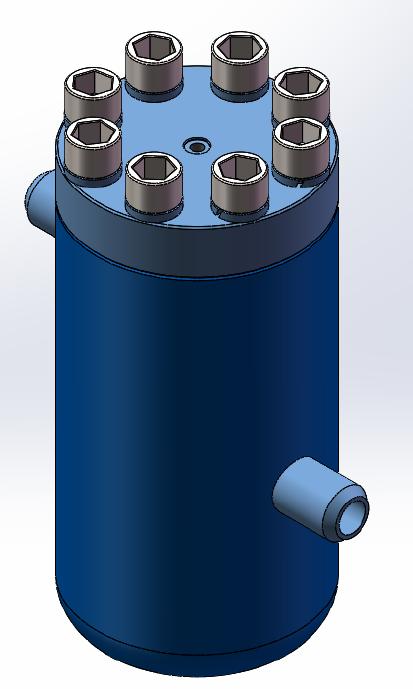

Flow flyer Strainer/Filter
Low Cost High Performance Manufacture, High Level Inspection; Reliable Quality

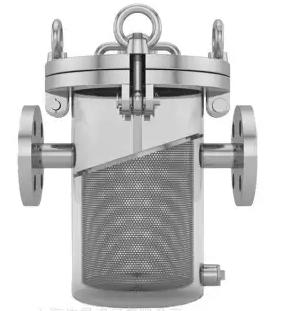

Filter Specification I
Industrial grade filter is to separate solid particle impurities from the fluid and improve the purity of the fluid or product, so as to protect the safe, stable and reliable operation of the equipment
Applications:
Customized products can be customized according to the specific needs of customers;
It is suitable for filtering pure water, industrial water,
boiler water, petrochemical, fine chemical and other industrial equipment
Product Features
There are many kinds of filters. Our products are mainly basket filters, which are used to filter impurities in fluid media.
Our products are compact in design and volume, reducing liquid loss. All parts in contact with liquid are made of stable stainless steel with strong corrosion resistance. It adopts O-ring seal, with simple structure and convenient operation.
Proposals and Technical Advantage
Made of high-quality stainless steel
The internal flow channel is smooth without cleaning dead angle. The pressure of filter hydrostatic test is 1.5 times of its design pressure, so as to make the filter more safe and reliable
O-rings are used for sealing between filter element and cylinder & end cover and filter element, end cover and cylinder, which greatly reduces the probability of leakage.
The outer surface of the filter is treated with shot peening matte or mirror polishing, which is beautiful and generous; Pickling and passivation treatment of inner surface to improve corrosion resistance
Strainer Classification

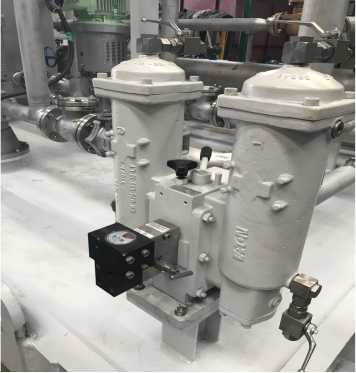

Double Strainer for Low pressure
Two Filter Housing could be switch easily and Detective device for inspection is on position
suitable for chemical industry, petrochemical industry, power plant and other places that need cleaning media
Single Strainer for High Pressure
There are two proposals for customer:
First, single filter for high pressure working condition
Second, double filter for safety operation in long time, as well as can be low pressure
Spare Parts
Filter Element & Cartridge
Parameters
| Standard & Code | |
| Standard for Design | ASME B & PV VIII DIV.1 |
| Standard for Test | ASME B & PV VIII DIV.1 |
| Standard for Material | AMSE/ASTM |
| Standard for Welding | ASME B& PV IX |
| Strainer Parameter | |
| Type | Single in/single out or Double Filter |
| Size | 420x270x610 |
| Working Liquid | Soft water or Chemical liquid |
| Design Pressure | 33Mpa |
| Design Temperature | 360’C |
| Flow | By request |
| Test Pressure | 50Mpa |
| Drain Size | ¼ NPT |
| Filters Specification | |
| Mesh (First Stage) | 20 mesh |
| Mesh (Second Stage) | 50 mesh |
| Inlet Size | By request |
| Outlet Size | By request |
| Weight | |
| Housing | |
| Cover | |
| Pipeline | |
| Stud & Screw | |
| Re-mark | |
| Magnetic Strainer | Design by Iron material within liquid or not |
| Design Parameters | Customized |

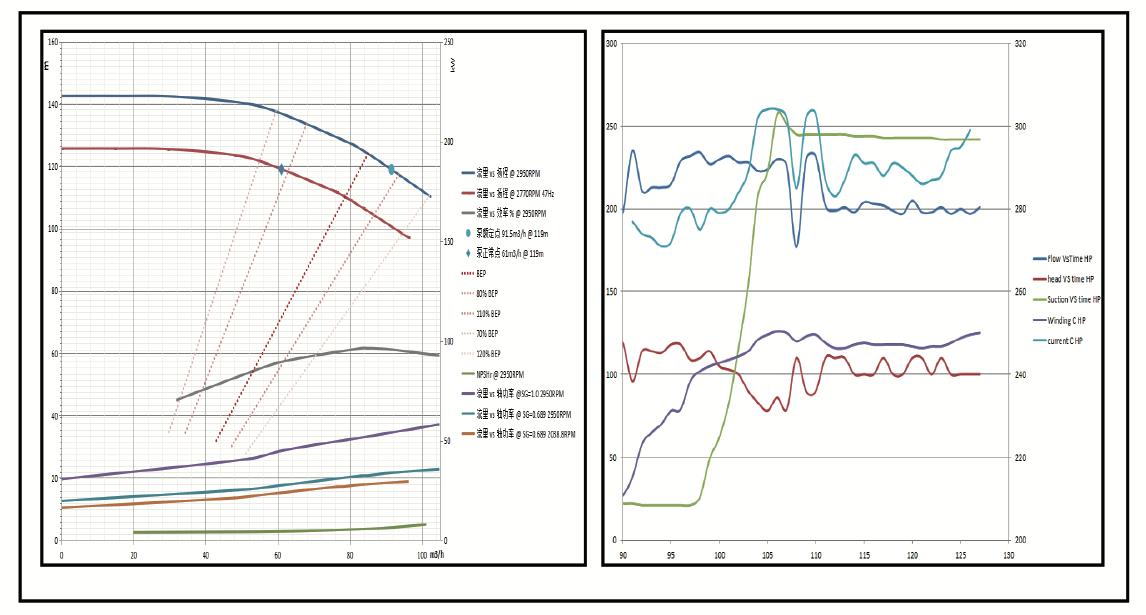

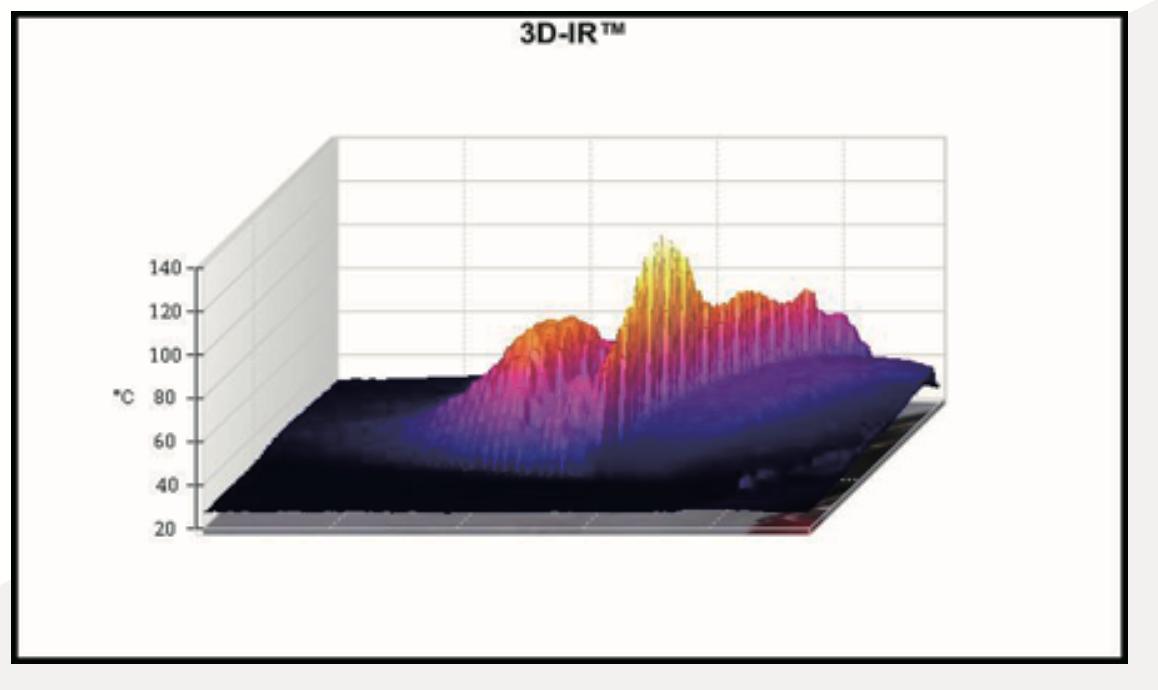

Full Support From Operation
Professional
We always listen to customers’ needs and continuously optimize the management process, production process, quality monitoring and basic design.
Ensure that we are always at the forefront of technological development and develop together with customers.
Being Focus on Customer Service
We always solve problems for customers and provide the latest solutions.
From the initial communication to installation, commissioning and maintenance, we always wait for the safety of the equipment.
Advanced manufacturing system
Product design is based on years of professional accumulation. Production management, logistics management, project management and quality control are our solid core.
Ensure that the equipment can bring high-quality and excellent performance under specific working conditions anywhere.
Reliable
Long time manufacturing in Valve industry & Experience for marketing
We could offer:
Customized Ball Valve
Data requirements Collection & Proposal Provide
ODM Products
Please leave your message or email with pump data requirements, for which we could have a selection to have a technical proposal to you!
