FlowFlyer high-pressure hose for tool internal cooling
High pressure hose & Mini-plug
Flow-Flyer high-pressure hose for tool cooling
- The modern machining processes without internal cooling is not efficiency enough and can not be imaged for quick machinery
- This is suitable for Swiss Type Tooling Machine. High efficiency means Time saving to produce more products
- With the help of such high pressure hose and mini-plug, it can turn the cooling from outside to internal cooling, which increase the efficiency of the machining processes.
- This high-pressure cooling system has two parts of hose and mini-plug Hose can afford high pressure liquid flow pumping Mini-plug can achieve fast changing and quick connection to distributors

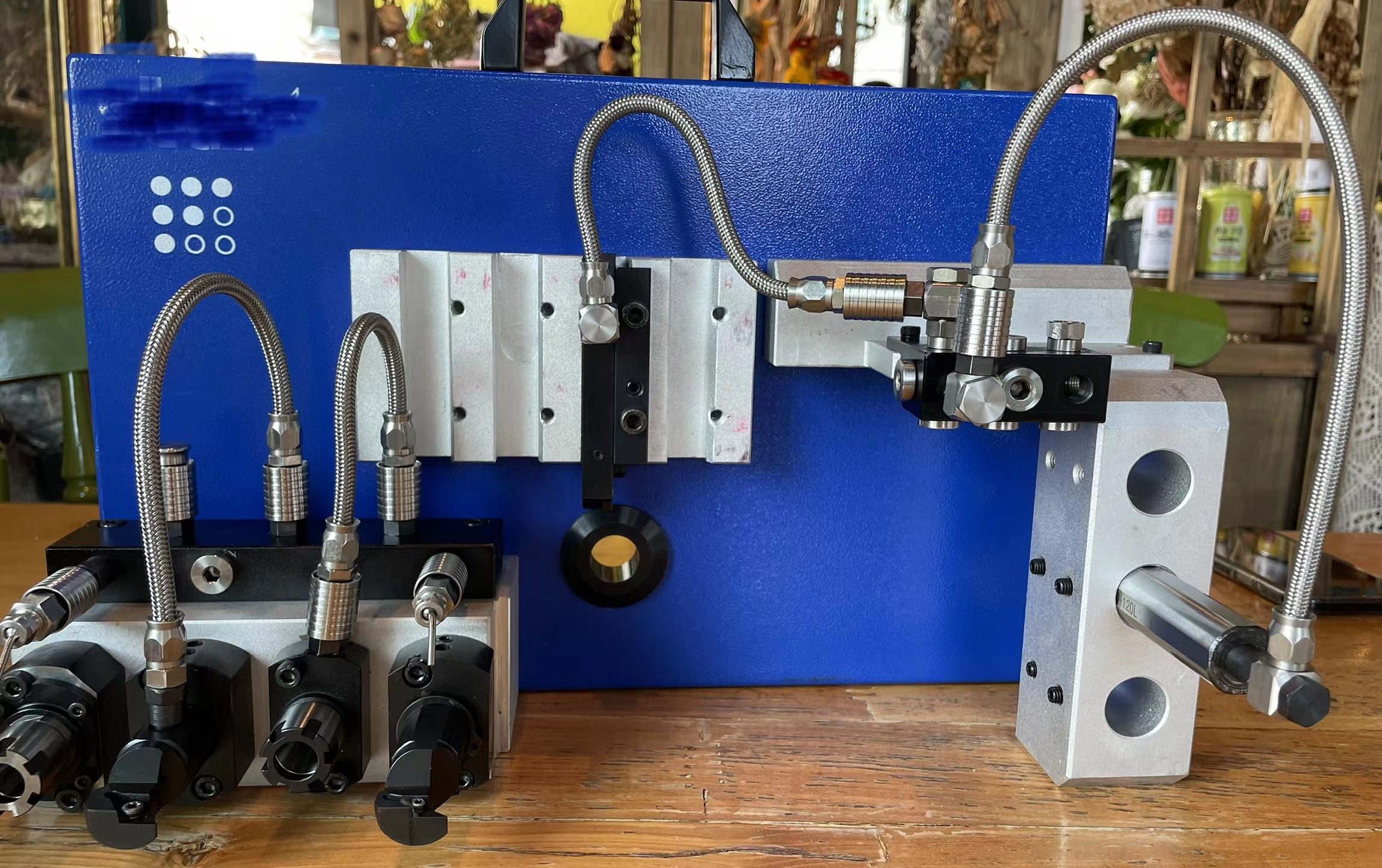

High-pressure hose
- This hose is made of stainless steel with network for protection, which could afford high pressure as much as over 100bar.

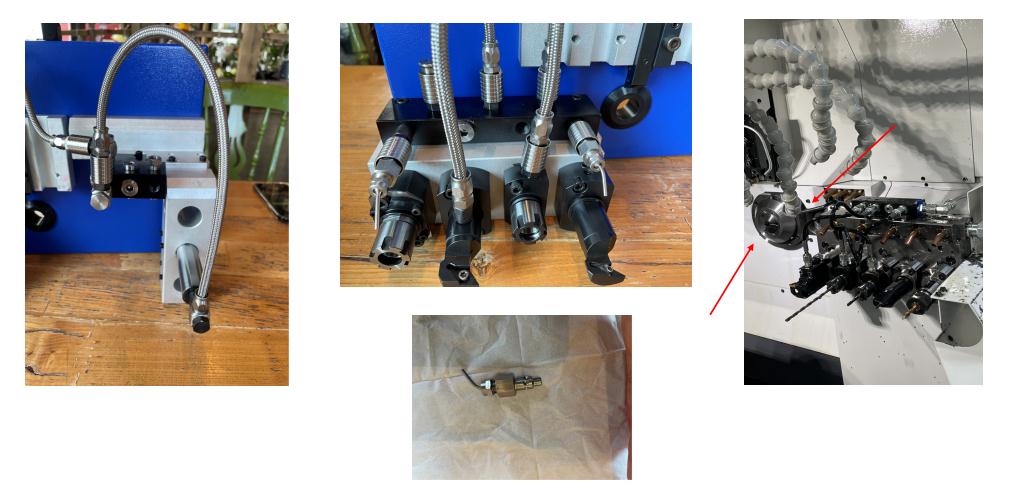

- It has straight type and angled as showed in pictures
- Easy operation
Specification:
1, Hose Type: Plug Jack
2, Length: >=300 mm
3, General Diameter: DN3mm or customized by request
4, Working Pressure: 0—200bar
5,Material: Stainless Steel
6, Temperature Tolerance: 0-68’C

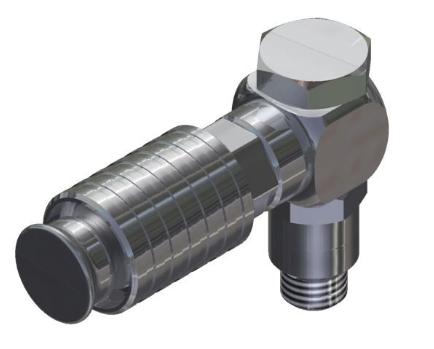

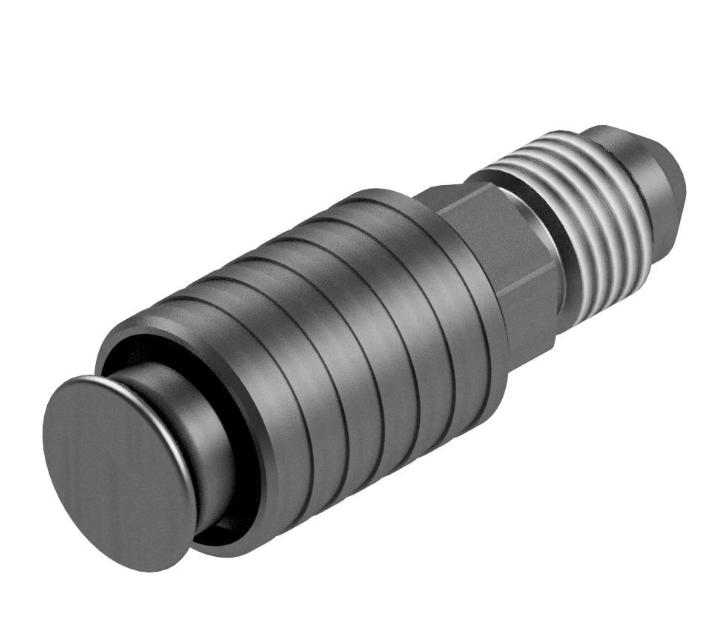

Mini Plug—Quick Connectors
In order to change the tool or cutting plate, it is difficult to detach the tool holder from the distribution system. With the help of MiniPlug system, a high-pressure quick connector system is easy to switch, even for smaller swiss type lathes.
Specification:
Design Type: Straight & Angled
Connection Size: customized
Connection type: Outer thread or Inner thread
General Diameter: DN3mm
Working Pressure: 0—200bar
Material: Stainless Steel
Material Seal: NBR

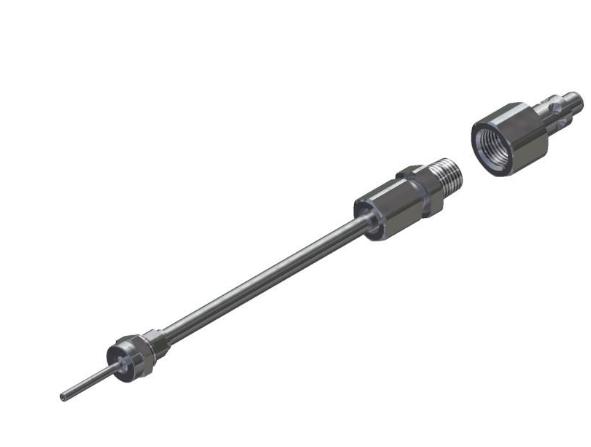

Coolant Nozzle
In order to change the tool or cutting plate, it is difficult to detach the tool holder from the distribution system. With the help of MiniPlug system, a high-pressure quick connector system is easy to switch, even for smaller swiss type lathes.
The MiniPlug system helps to reduce machine downtime for tool changes.
Specification:
Type: Adjustable
Design: Straight or angled
Connection Size: customized by request
Length: 8.4mm
Diameter：
Working Pressure: 0—200bar
Material: Stainless steel & steel
TEMP: 0-68’C
Please leave your message or email with pump data requirements, for which we could have a selection to have a technical proposal to you!
